JDY Conrod For 2.5 TFSI Audi RS3 TTRS 2.5L 5Cyl Series
JDY Conrod For 2.5 TFSI Audi RS3 TTRS 2.5L 5Cyl Series
Key Features:
-
i-Beam Steel Connecting Rods for 2.5L TFSI Engines (EA855)
-
Designed for extreme performance, capable of handling 275 HP per cylinder.
-
Provides a substantial performance boost for your Audi RS3 or Audi TTRS.
-
Optimized for high-performance applications, ensuring reliability under high loads.
-
-
Deep Drilled Oil Tunnel
-
The rods are engineered with a deep-drilled oil tunnel that allows engine oil to pass between the piston pins and engine bearings, ensuring superior lubrication and reduced wear.
-
-
Extra Oil Grooves
-
Additional oil grooves are included on both the small and crank side to ensure optimal lubrication for the piston pins and crankshaft side of the engine, reducing friction and wear.
-
-

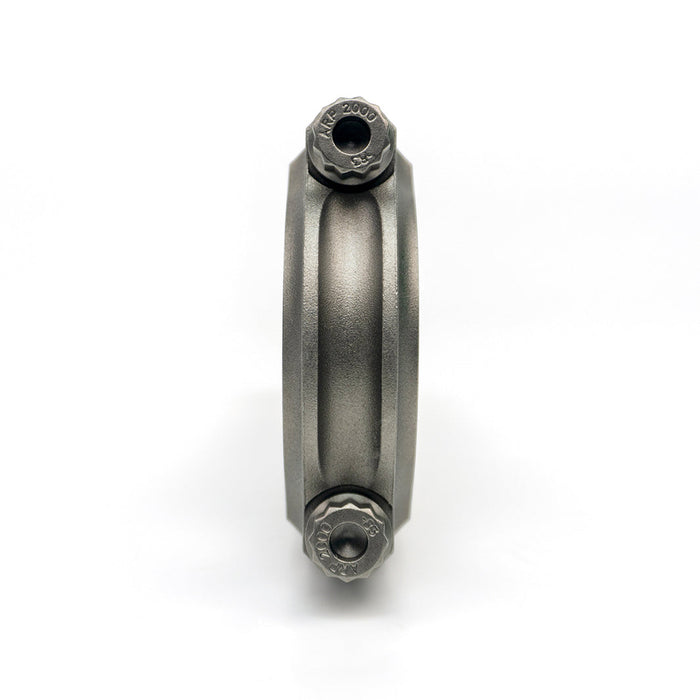

High-Quality ARP2000 Conrod Bolts
-
Equipped with ARP 2000 expansion bolts to provide robust fastening and long-term durability.
-
ARP 625+ bolts are available as an upgrade, offering even greater strength for high-stress applications.
-
-
i-Beam Construction
-
Extra thickness in the i-beam design increases the strength and stability of the connecting rods, making them ideal for high-performance engines that run under heavy boost.
-
-
Precision Testing and Drilling
-
All JDY connecting rods are precisely angled and tested to ensure maximum strength and performance.
-
Drilled oil passages ensure that lubrication is maximized to reduce friction and prevent engine damage.
-
-
Optional Upgrades
-
ARP 625+ Bolts: Available as an optional upgrade for even greater strength and reliability in extreme high-performance applications.
-
Type and Size Specifications:
| Type | Size (Inch) | Size (Metric) | Stretch (Inch) | Stretch (mm) |
|---|---|---|---|---|
| ARP 2000 | 5/16" x 1.500" | 7.9mm x 38.1mm | 0.0056" | 0.142mm |
| ARP 8740 | 3/8" x 1.600" | 9.5mm x 40.64mm | 0.0047" | 0.119mm |
| ARP 2000 | 3/8" x 1.600" | 9.5mm x 40.64mm | 0.0058" | 0.147mm |
| ARP 8740 Wave Loc | 3/8" | 9.5mm | 0.0063" | 0.160mm |
| ARP 8740 | 7/16" x 1.400" | 11.1mm x 35.56mm | 0.0046" | 0.117mm |
| SCAT 2001 | 7/16" x 1.500" | 11.1mm x 38.1mm | ||
| ARP 8740 | 7/16" x 1.600" | 11.1mm x 40.64mm | 0.005" | 0.127mm |
| ARP 2000 | 7/16" x 1.600" | 11.1mm x 40.64mm | 0.0062" | 0.157mm |
| ARP 8740 | 7/16" x 1.800" | 11.1mm x 45.72mm | 0.006" | 0.152mm |
| SCAT 2000 | 7/16" x 1.800" | 11.1mm x 45.72mm |
Fitment Years:
-
2012-2015 | Audi | RS3 8P
-
2016-2023 | Audi | RS3 8V
-
2016-2023 | Audi | TTRS 8S
-
2017-2023 | Audi | RS Q3
-
2013-2023 | Volkswagen | Golf R Mk7
-
2012-2023 | SEAT | Leon Cupra R
-
2012-2023 | Skoda | Octavia vRS
