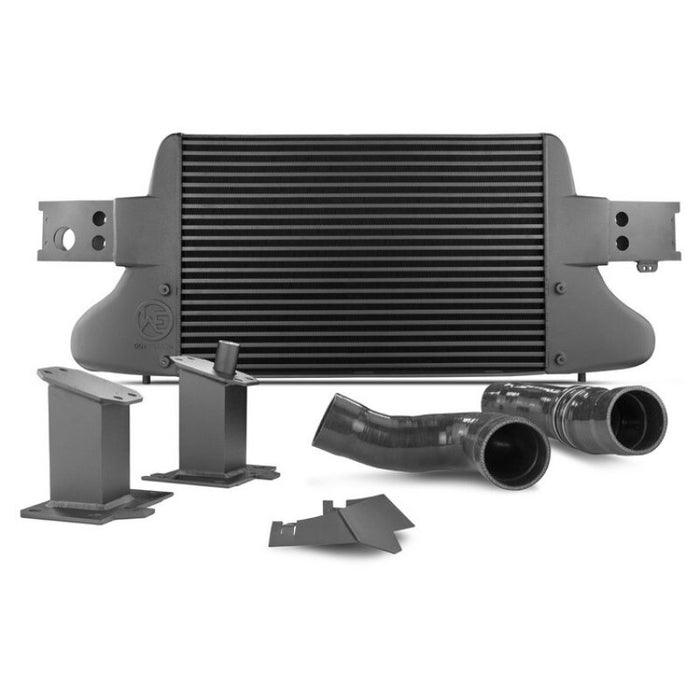

Wagner Tuning Audi RS3 8Y 2.5 TFSI EVOX Competition Intercooler Kit

Audi RS3 8Y 2.5 TFSI EVOX Competition Intercooler Kit from Wagner Tuning.

An intercooler removes heat from the compressed charge air before it reaches the engine. Cooler air is denser and holds intake temperatures steadier through repeated hard runs. Core volume sets how much heat the cooler can absorb, while flow area and end-tank shape decide how much pressure is lost across it. Wagner Tuning lists a 600 x 395 x 135 mm (stepped) core with 28.9 liters (+250% vs. the factory 8.3 liters) and a flow area of 2,370 cm² (+127% vs. OEM 1,043 cm²). These are Wagner's own comparisons with the factory intercooler; they describe cooling capacity and are not a power figure. The core is stepped, so volume is not a simple width x height x depth product.

Specifications

• Core: 600 x 395 x 135 mm (stepped)
• Volume: 28.9 liters (+250% vs. the factory 8.3 liters)
• Flow area: 2,370 cm² (+127% vs. OEM 1,043 cm²)
• Inlet/outlet: Ø82 mm
• Weight: 18.0 kg
• Installation: direct replacement for the factory intercooler (plug-and-play per Wagner)

Wagner lists this for

• Audi RS3 (8Y) Sportback/Sedan, 294 kW/400 hp, from 07/2021

Before you order

• ORT does not quote horsepower or temperature gains for this part; results depend on the car, tune and conditions.
• Confirm model, engine and year against the fit table before ordering.
