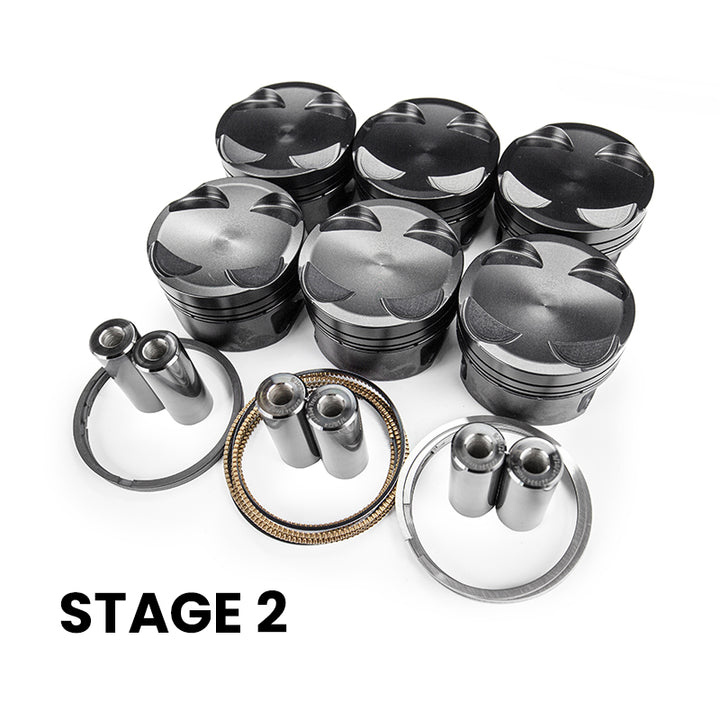

JDY Stage 2 Forged Pistons - BMW S58 (G8X M2 / M3 / M4)
Engineered for 1800+ HP | 9.2:1 Compression | 84mm Stock Bore
Built for serious power, the JDY Stage 2 Pistons are the ultimate internal upgrade for your BMW S58-powered G80 M3, G82 M4, or G87 M2. Whether you're building a high-boost street car or a full-blown race machine, these pistons are designed to handle extreme pressure, temperature, and output—supporting builds up to 1800+ horsepower.
Key Features & Benefits:

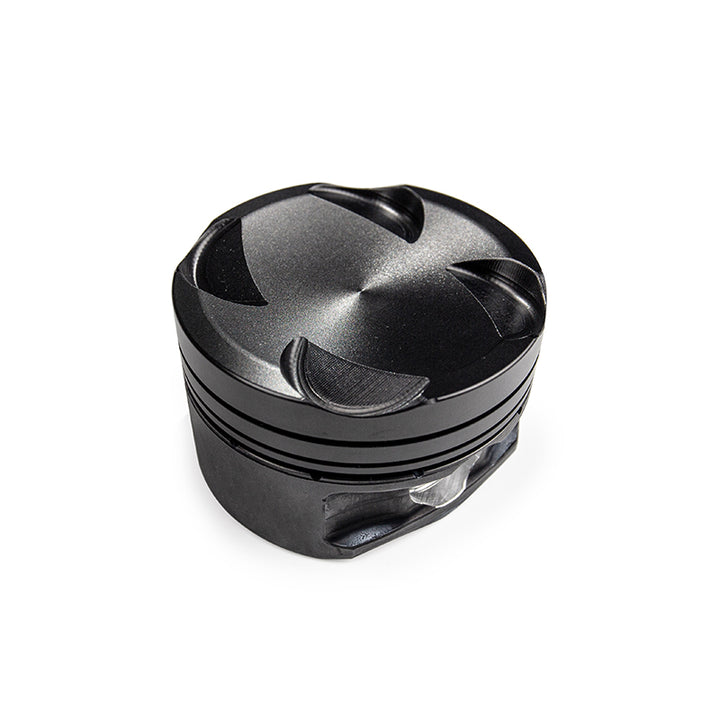

Precision Piston Design
-
Bore Size: 84mm (OEM stock size)
-
Compression Ratio: 9.2:1
-
Material: Forged from ultra-strong 2618 billet aluminum alloy for maximum durability and performance under high loads
-
Available Tiers:
-
Stage 1: Up to 1500 HP
-
Stage 2: Up to 1800+ HP with advanced coatings and reinforcements
-

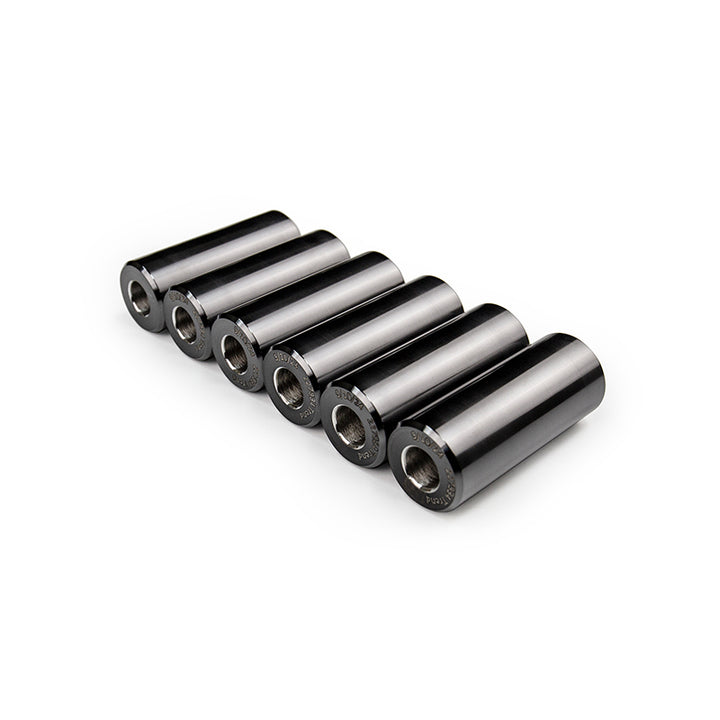

H13 Alloy Wrist Pins
-
Diameter: 23mm
-
Wall Thickness: 0.225”
-
Stage 2 Coating: DLC (Diamond-Like Carbon) coating reduces friction and wear, enhancing lifespan under high-stress, high-temp conditions
Total Seal Performance Piston Rings
-
Thicker and stronger than OEM for improved combustion sealing, oil control, and resistance to extreme cylinder pressures
Optimized Ring Groove Geometry
-
Redesigned grooves improve heat management and reduce ring flutter
-
Ensures better sealing and reliability at high RPM and temps
Valve Pocket Compatibility
-
Custom valve pockets accommodate Kelford Stage 1, 2, and 3 camshafts
-
Allows increased valve lift and timing without clearance issues
-
Engineered for aggressive cam profiles and high-performance valvetrain setups
Stage 2-Specific Enhancements
-
Hard Anodized Crown and Skirt: Increases surface hardness and thermal resistance
-
DLC Wrist Pins: Reduces friction and wear on rods under extreme conditions
-
Ideal for high-power, high-boost, and track-focused builds
Technical Specifications:
-
Finished Bore: 3.307 inches
-
Compression Ratio: 9.2:1
-
Wrist Pin Diameter: 0.905 inches
-
Wrist Pin Length: 2.250 inches
Why Choose JDY Pistons?
JDY’s Stage 2 Pistons are designed for professional-grade performance and maximum engine reliability. Whether you're competing on track or building a 9-second street car, these pistons give you the strength, precision, and performance you need to push your S58 3.0T to its full potential.
