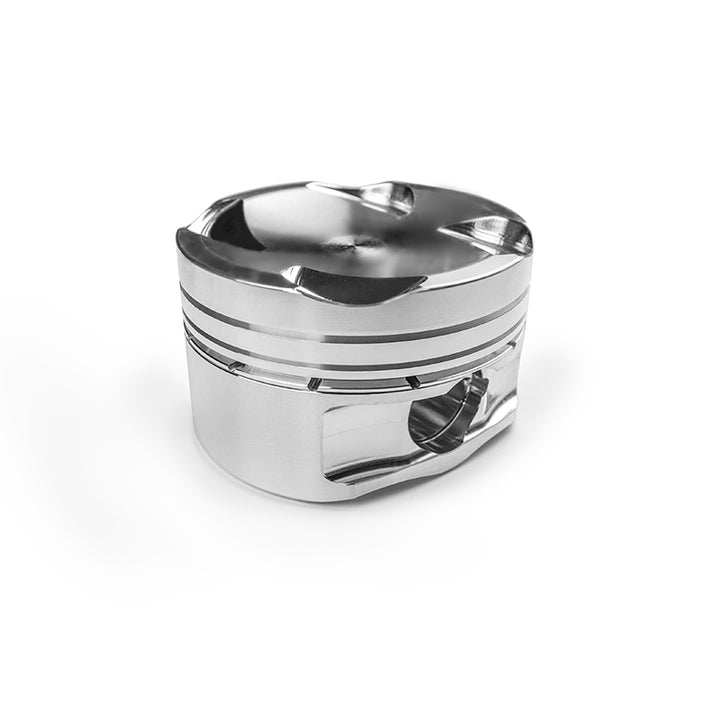

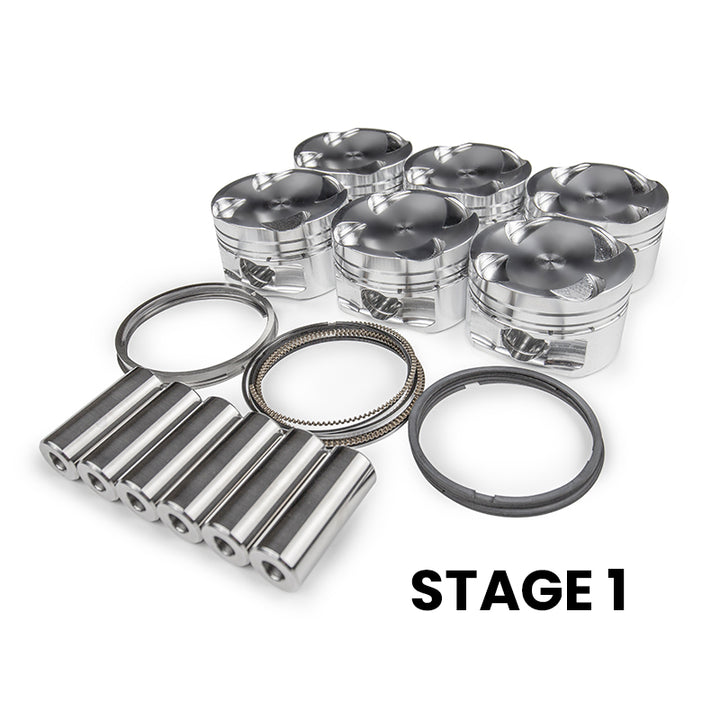

JDY Stage 1 Forged Pistons - BMW S58 (G8X M2 / M3 / M4)
Engineered for 1500 HP | 9.2:1 Compression | 84mm Stock Bore
Take your BMW S58 engine to the next level with the JDY Stage 1 Pistons—a forged internal upgrade designed for high-performance street builds, track-day cars, and aggressive daily drivers. Built to handle up to 1500 horsepower, these pistons are crafted for strength, efficiency, and reliability under high-boost conditions while maintaining OEM-level fitment and compatibility.
Key Features & Benefits:
Precision Forged Design
-
Bore Size: 84mm (OEM stock size)
-
Compression Ratio: 9.2:1
-
Material: Forged from 2618 billet aluminum alloy, offering a superior balance of strength and weight
-
Performance Rating: Supports builds up to 1500 HP, ideal for aggressive street and weekend race use
H13 Alloy Wrist Pins
-
Diameter: 23mm
-
Wall Thickness: 0.225”
-
Built from ultra-durable H13 tool steel to withstand high cylinder pressures and prolonged heat cycles
Total Seal Piston Rings
-
High-performance Total Seal rings deliver improved sealing, oil control, and reduced blow-by
-
Thicker than OEM for superior combustion chamber efficiency
Redesigned Ring Grooves
-
Optimized ring land geometry improves heat dissipation and ring stability
-
Reduces ring flutter at high RPM and ensures long-lasting performance
Custom Valve Pocket Design
-
Engineered to work with Kelford Stage 1 and Stage 2 camshafts, providing the clearance needed for higher lift and increased airflow without compromising piston integrity
Technical Specifications:
-
Finished Bore: 3.307 inches
-
Compression Ratio: 9.2:1
-
Wrist Pin Diameter: 0.905 inches
-
Wrist Pin Length: 2.250 inches
Why Choose JDY Stage 1 Pistons?
JDY Stage 1 Pistons are built for enthusiasts looking to extract serious power from their S58 while keeping durability in mind. Whether you're chasing high 9s or just want a solid foundation for your next power goal, these pistons offer OEM-level fitment with motorsport-grade performance.
Vehicle Fitment:
-
BMW G87 M2 Coupe (2023+)
-
BMW G80 M3 & M3 Competition Saloon (2021+)
-
BMW G81 M3 Competition Touring (2023+)
-
BMW G82 M4 & M4 Competition Coupe (2021+)
-
BMW G83 M4 Competition Convertible (2021+)
Built for power. Built for the street. JDY Stage 1 Pistons for BMW S58 - now available at ORT Motorsport.
