The factory high-pressure fuel pump can become a limiting factor when increasing ethanol content, moving to higher-output ECU calibrations or upgrading the factory turbocharger. Integrated Engineering’s HPFP Internal Upgrade Kit increases fuel delivery while retaining the original pump housing.
IE enlarges the factory 9.92mm piston to 11.68mm, increasing stroke volume from 448mm³ to 621mm³. The result is up to 38.58% more fuel volume than the factory pump, providing the additional fueling capacity required for supported ethanol and hybrid-turbo calibrations.

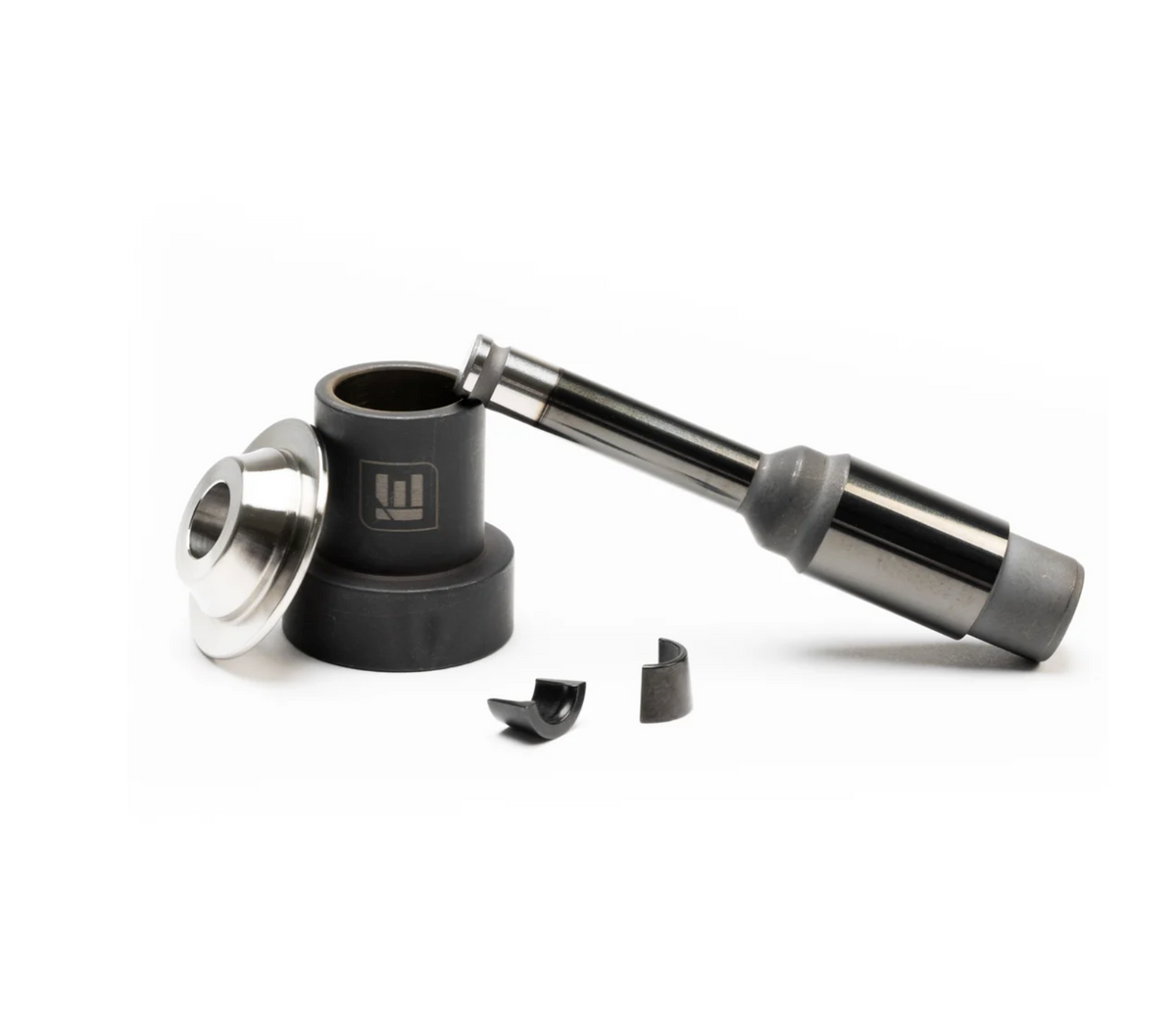

Each piston and cylinder is manufactured as a matched set and individually measured in-house. The assembly combines a DLC-coated tool-steel piston, nitrided tool-steel cylinder and lightweight titanium retainer for reduced friction, increased wear resistance and reliable operation under demanding conditions.
Features
- Up to 38.58% greater stroke volume than the factory HPFP
- Supports compatible ethanol and hybrid-turbo ECU calibrations
- 11.68mm DLC-coated tool-steel piston
- Nitrided tool-steel cylinder for improved hardness and wear resistance
- Lightweight titanium spring retainer
- Uses the factory HPFP housing and spring
- No permanent vehicle modifications required
- Broken in and verified on IE’s fuel-pump dyno
- Engineered and manufactured in the USA
- 12-month, unlimited-mile limited warranty
Vehicle Fitment
- 2017–2024 Audi S4 3.0T — B9/B9.5
- 2017–2024 Audi S5 3.0T — B9/B9.5
- 2018–2024 Audi SQ5 3.0T — B9/B9.5
- 2018–2024 Audi RS5 2.9T — B9/B9.5
Installation
Installation requires disassembly of the factory high-pressure fuel pump and should be completed in a clean environment by an experienced technician. IE’s dedicated HPFP assembly tool is sold separately and is strongly recommended.
Estimated installation time: 2–3 hours.
Proper ECU calibration is required to utilize the additional fueling capacity. Contact ORT Motorsport if you need help confirming compatibility with your current or planned tuning package.
