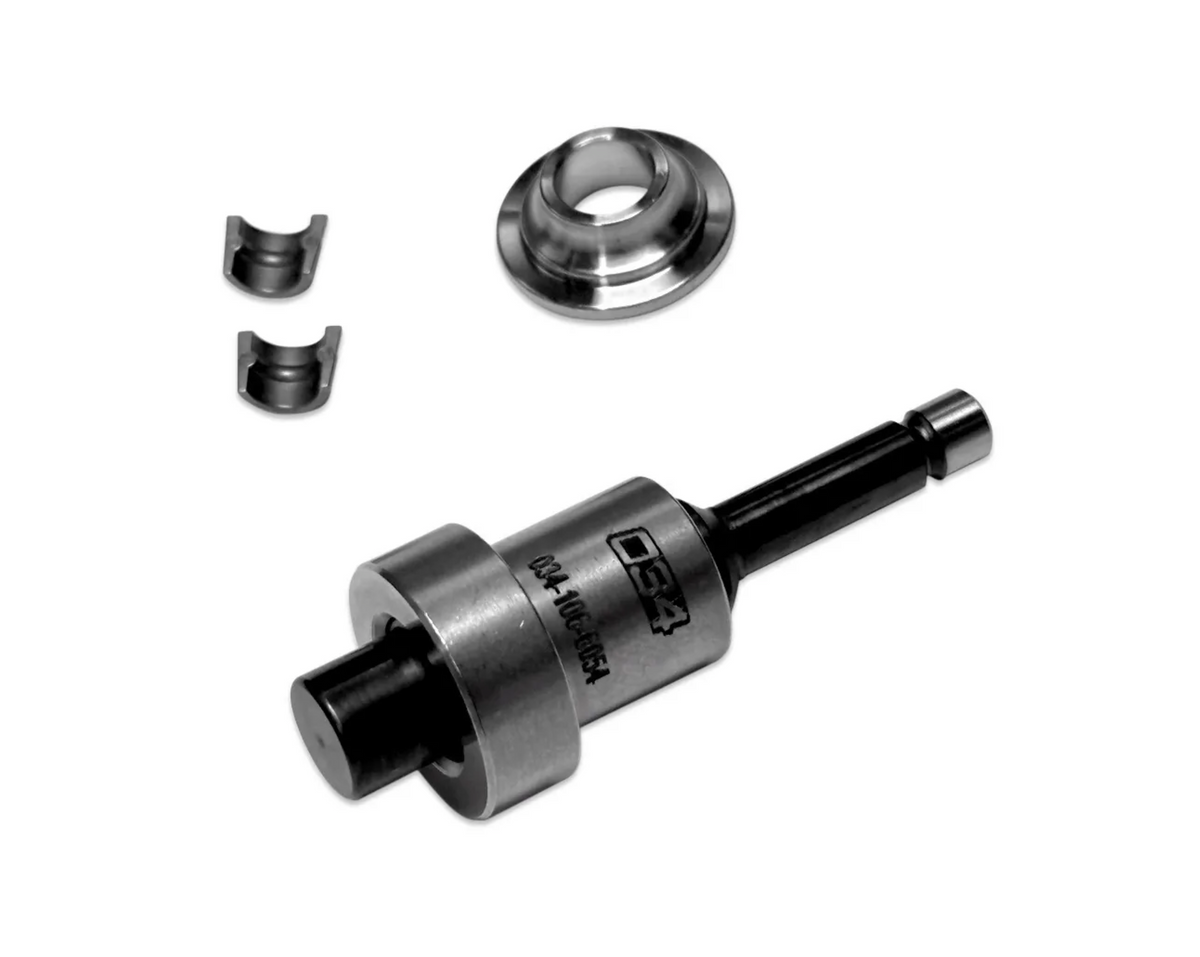

034Motorsport High Pressure Fuel Pump Piston Upgrade Kit, 2.9T & 3.0T TFSI EA839
Got a question?
Don't be a stranger.
The factory high-pressure fuel pump can become a limiting factor when running ethanol-based calibrations, upgraded turbochargers or higher-output performance software. The 034Motorsport HPFP Piston Upgrade Kit increases the fueling capacity of the original pump while retaining the factory housing.
034Motorsport increases the piston diameter from 10.00mm to 11.67mm, delivering up to 37% more flow than the factory high-pressure fuel pump. This additional capacity supports the increased fuel demands of ethanol, race fuel, upgraded turbochargers and compatible Stage 1+, Stage 2+ and Stage 3 ECU calibrations.
The precision-machined piston and cylinder are manufactured as a matched set for proper clearance and consistent operation. Both components receive a DLC coating to reduce friction and improve durability under the extremely tight tolerances and high operating pressures of the direct-injection fuel system.
Features
- Up to 37% more flow than the factory HPFP
- Increased piston diameter from 10.00mm to 11.67mm
- Supports compatible ethanol and upgraded-turbo calibrations
- Precision-machined to aerospace tolerances
- DLC-coated piston and cylinder
- Matched piston and cylinder set
- Retains the factory high-pressure fuel-pump housing
- Drop-in internal upgrade with no permanent vehicle modifications
- Required for many 034Motorsport Stage 1+, Stage 2+ and Stage 3 Dynamic+ calibrations
What’s Included
- One matched HPFP piston and cylinder set
Vehicle Fitment
- 2018+ Audi S4 3.0T
- 2018+ Audi S5 3.0T
- 2018+ Audi SQ5 3.0T
- 2018+ Audi RS5 2.9T
- B9/B9.5 Audi RS4 2.9T
- 2019+ Audi A6 3.0T
- 2019+ Audi A7 3.0T
- 2019+ Audi S6 2.9T
- 2019+ Audi S7 2.9T
- 2019+ Audi Q8 3.0T
- 2020+ Audi Q7 3.0T
- 2019+ Porsche Macan Turbo 2.9T
- 2020+ Porsche Macan GTS 2.9T
- 2021+ Porsche Macan S 2.9T
Installation
Installation requires removal and disassembly of the factory high-pressure fuel pump. Because the pump operates with extremely tight internal tolerances, assembly must be completed in a clean environment with the proper tools. Professional installation is strongly recommended.
The 034Motorsport EA839 High-Pressure Fuel Pump Tool is sold separately.
Proper ECU calibration is required to utilize the additional fueling capacity. Contact ORT Motorsport if you need help confirming compatibility with your vehicle, fuel blend or current tuning package.
