Ringer Racing S4 B8 3.0T (Supercharger) Stage 4+ Billet Series Clutch Kit

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing.

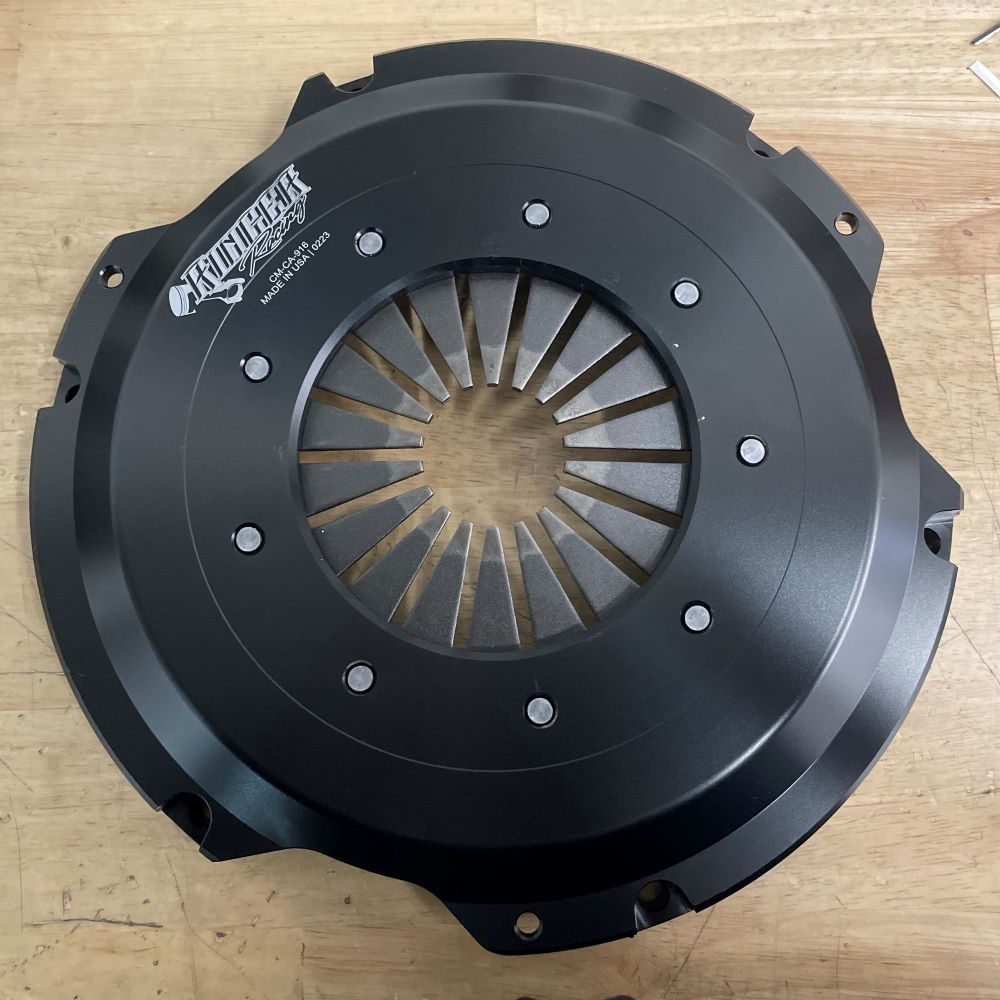

The Ringer Racing Billet Series uses a billet aluminum pressure plate cover combined with choice of 850 diaphragm, these diaphragms have 7-14% more clamp load and hold then the highest holding standard Ringer Racing 240mm clutch kit that uses the XR pressure plate. Making these one of the highest holding single 240mm disk street clutch kits on the market.

Kit includes:

Ringer Racing 240mm Billet Series Clutch Kit
Throw-out Bearing
Alignment tool

Stage 3

Street Clutch
Heavy-Duty Billet Aluminum pressure plate cover
Hi-Leverage pressure ring design
Ductile Iron Casting
Sprung hub/cushioned Steel backed disc
Steel backed Organic/Cerametalic Material
Blue Diaphragm

Stage 3+

Street Cutch
Heavy-Duty Billet Aluminum pressure plate cover
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Steel backed Organic/Cerametalic Material
White Diaphragm – Increased clamp load and pedal resistance

Stage 4

Street/Race Clutch
Heavy-Duty Billet Aluminum pressure plate cover
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Full Face Cerametalic Material on both sides
Blue Diaphragm

Stage 4+

Street/Race Clutch
Heavy-Duty Billet Aluminum pressure plate cover
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Full Face Cerametalic Material on both sides
White Diaphragm – Increased clamp load and pedal resistance

Torque Rating at the Flywheel

Stage 3 – 845 ft lbs
Stage 3+ – 900 ft lbs
Stage 4 – 1050 ft lbs
Stage 4+ – 1125 ft lbs
