Ringer Racing S4 B8 3.0T (Supercharger) Stage 3 Stamp Steel Clutch/25.5lb Flywheel w/Insert Kit

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing

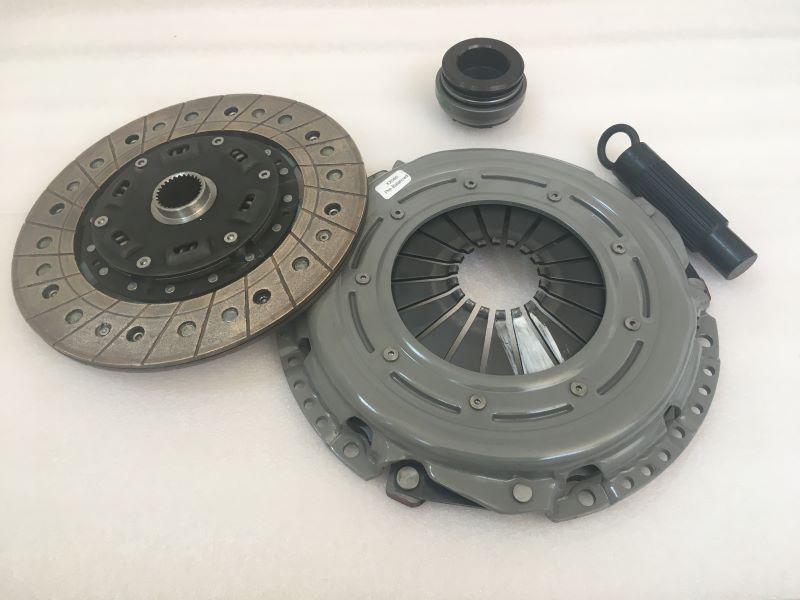

Kit includes:

Ringer Racing Clutch kit
Billet Steel Flywheel with Billet Insert = 25.5 lbs
Throw-out Bearing
Alignment tool

Stage 3

Heavy-duty street & racing system
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Ductile Iron Casting
Sprung hub/cushioned Steel backed disc
Steel backed Organic/Cerametalic Material

Stage 3+

Modified pressure plate for 8% more clamping load
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Steel backed Organic/Cerametalic Material
Slightly stiffer pedal

Stage 4

Heavy-duty street & racing system
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Full Face Cerametalic Material on both sides

Stage 5

Modified pressure plate for 8% more clamping load
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Full Face Cerametalic Material on both sides
Slightly stiffer pedal

Torque Rating at the Flywheel

Stage 3 – 740 ft lbs
Stage 3+ – 800 ft lbs
Stage 4 – 925 ft lbs
Stage 5 – 985 ft lbs

Note: Bolt torque specs

Flywheel bolts for the 2 halves of the flywheel = 55 ft lbs
Pressure plate bolts = 25 ft lbs
Dab of loctite on all bolts
Note: Torque specs for OEM flex plate to flywheel bolts is 60 nm or 44.25 ft lbs.
