Ringer Racing Gti & Golf R (MK8) Stage 4 Clutch/Flywheel Kit

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing

Applications:

VW MK8 GTI 2.0T TSI EVO4
VW MK8 Golf R 2.0T TSI EVO4

Kit includes:

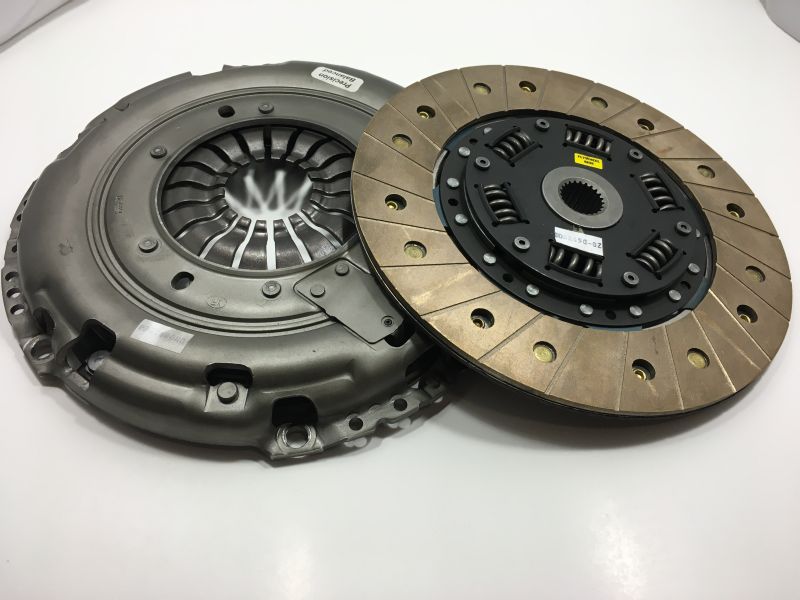

Ringer Racing Clutch Kit
CM Billet Steel Flywheel
Alignment tool
Flywheel/PP Bolts
Kit does not include a throw-out bearing. Flywheel is taller which deletes the need for the OEM flywheel spacer.

*Optional Hydraulics:

CM Bleeder Block for use with stock line
CM Bleeder Block kit with SS clutch line (replaces stock line)
CM Performance Throw-out bearing kit with clutch line (replaces stock line)

Stage 2

Heavy-duty daily clutch
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Ductile Iron Casting
Sprung hub/cushioned Steel backed disc
Steel backed Organic Material

Stage 2+

Heavy-duty dialy clutch
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Ductile Iron Casting
Sprung hub/cushioned Steel backed disc
Steel backed Organic Material
Slightly stiffer pedal then Stage 2

Stage 3

Heavy-duty street & racing system
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Ductile Iron Casting
Sprung hub/cushioned Steel backed disc
Steel backed Organic/Cerametalic Material

Stage 3+

Heavy-duty street & racing system
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Ductile Iron Casting
Sprung hub/cushioned Steel backed disc
Steel backed Organic/Cerametalic Material
Slightly stiffer pedal then Stage 3 and stage 4
Note: Stage 3 disk with Stage 5 pressure plate

Stage 4

Heavy-duty street & racing system
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Full Face Cerametalic Material on both sides

Stage 5

Heavy-duty street & racing system
Heavy-Duty reinforced pressure plate
Hi-Leverage pressure ring design
Sprung hub/cushioned Steel backed disc
Full Face Cerametalic Material on both sides
Slightly stiffer pedal then Stage 3 and stage 4

Flywheel Options:

18lb Single Mass Steel Flywheel (can have gear rattle)
23lb Single Mass Steel Flywheel (requires ARP Flywheel bolt option)

Torque Rating at the Flywheel

Stage 2 – 425 ft lbs
Stage 2+ – 490 ft lbs
Stage 3 – 575 ft lbs
Stage 3+ – 635 ft lbs
Stage 4 – 735 ft lbs
Stage 5 – 810 ft lbs

Note: Bolt torque specs:

Flywheel bolts = 45 ft lb, 65 lb and then finish at 85 ft lb
Pressure plate bolts = 25 ft lbs
Dab of loctite on all bolts
