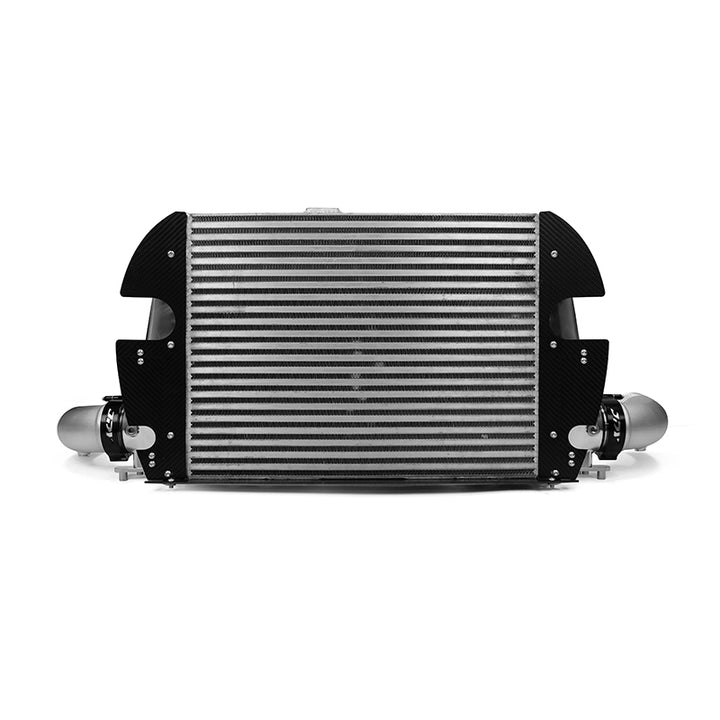

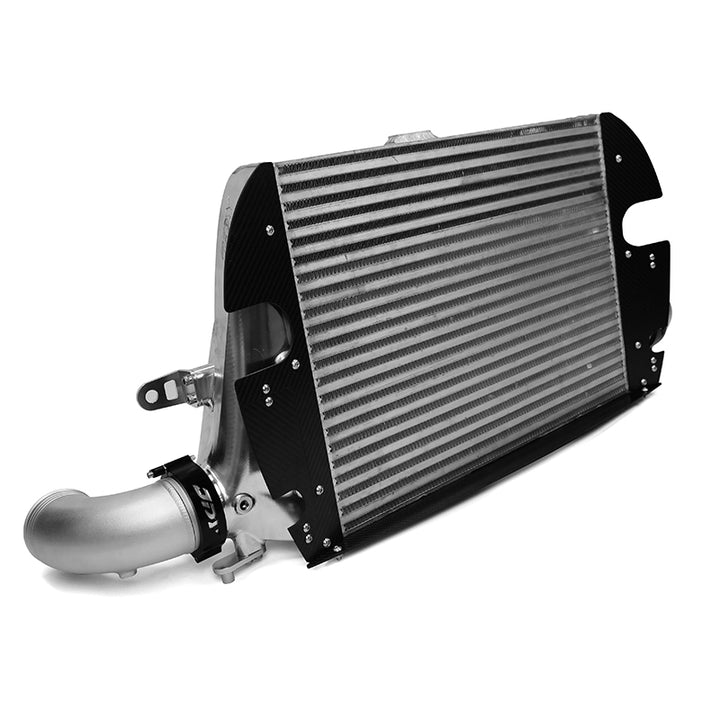

JDY Front Mount Intercooler (FMIC) for Audi RS3 - 1300HP Rated | 2.5 TFSI DAZA/DNWA

JDY Front Mount Intercooler (FMIC) for Audi RS3 - 1300HP Rated | 2.5 TFSI DAZA/DNWA

Supports up to 1300HP | High-Efficiency Design | Direct Fit

Fitment:

• Audi RS3 8V.2 (2017-2020)

• Audi RS3 8Y (2021+)

Engineered for Maximum Performance

The JDY 2.5 TFSI Front Mount Intercooler (FMIC) was designed with a singular goal — deliver massive cooling capacity and maximum airflow for serious power builds. Whether you're pushing 600HP or going all-in at 1300HP, this intercooler has the durability, efficiency, and intelligent design to match your goals.

🔧 Key Features:

• 1300HP Cooling Capacity

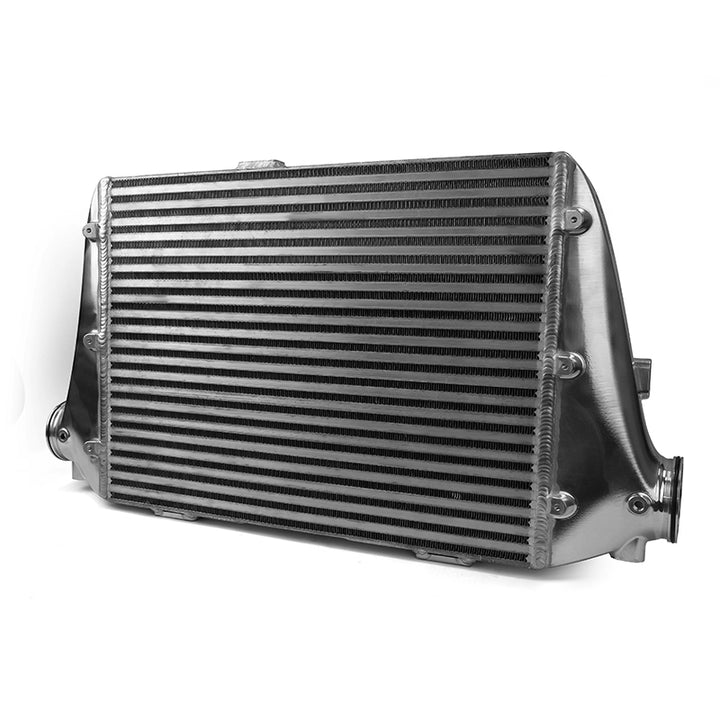

  Built around a custom bar-and-plate core with 110mm thickness, CFD-optimized airflow, and billet-machined end tanks for ultimate performance.

• Billet End Tanks w/ 76mm Inlets
  CNC-machined from billet aluminum for high-boost strength and consistent flow distribution.

• CFD-Engineered Fins
  Designed through Computational Fluid Dynamics to ensure even airflow across the entire core and drastically lower IATs (intake air temps).

• Wiggins Clamp Inlet & Outlet Connections
  Leak-free performance even under extreme boost — no welding required, just plug and play pipe swaps.

• Pre-Machined 1/8” NPT Ports
  Extra sensor ports allow you to easily run WMI nozzles, IAT sensors, or boost sensors without custom modifications.

• Crash Bar Included
  Comes with a black powder-coated steel crash bar, compatible with stock sensors, horns, toll bars, ACC brackets (optional), and more.

• Universal Hose Sizing Support
  Choose from 70mm-76mm or 65mm-76mm configurations for both inlet and outlet to match JDY and other popular piping setups.

• Airflow Guide System
  Integrated air guide around the core maximizes incoming airflow and ensures optimal core usage.

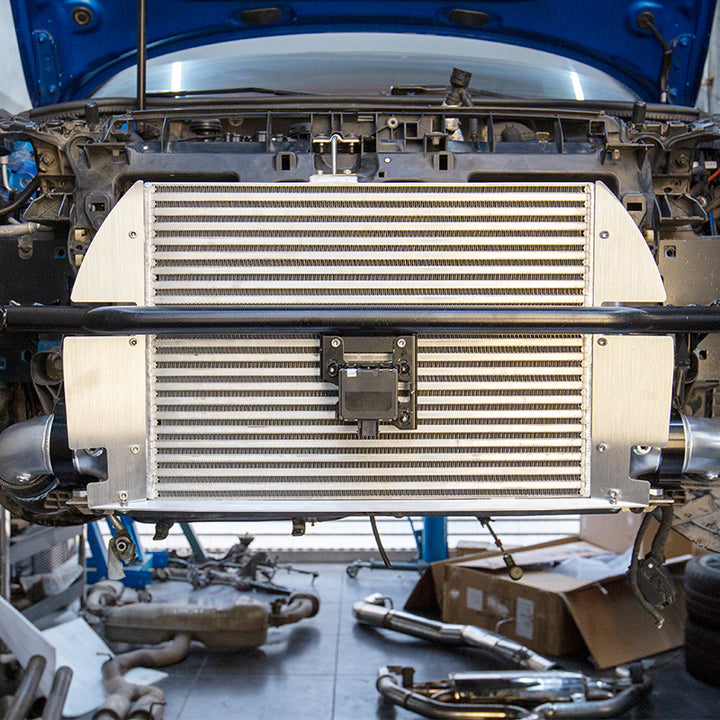

• Direct-Fit Installation
  No cutting, no trimming — bolts into factory locations. Full compatibility with OEM sensors and accessories for a seamless upgrade.

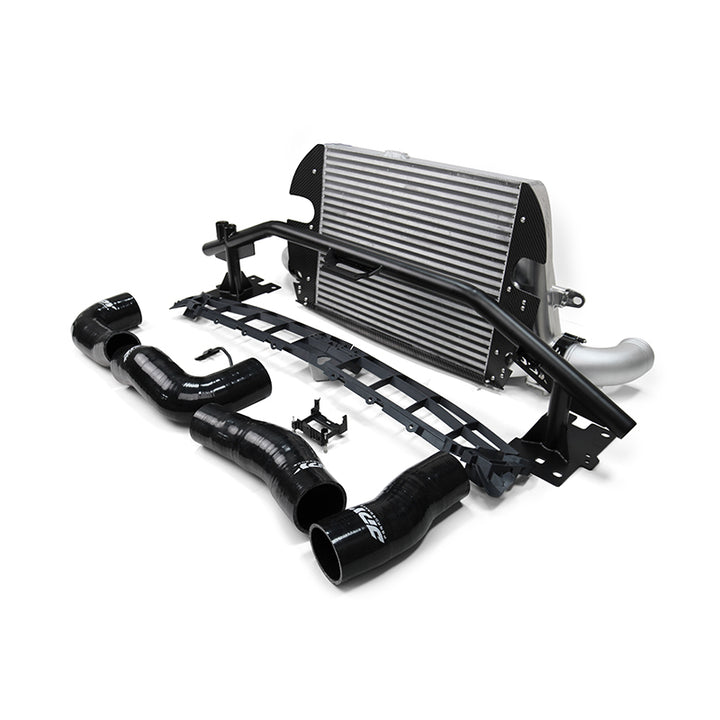

📦 Included in the Kit:

• JDY Front Mount Intercooler Core

• Billet Aluminum End Tanks

• Wiggins-Style Clamp Setup

• Black Steel Crash Bar

• Optional Inlet/Outlet Size Configurations

• Pre-Machined NPT Sensor Ports

• Airflow Guide Panel

📘 Installation Guide:
Click Here to Download (PDF)

Upgrade with confidence. The JDY FMIC is the ultimate cooling solution for your RS3 or TTRS — engineered for maximum horsepower, tested in real-world racing, and refined for perfect fitment.
